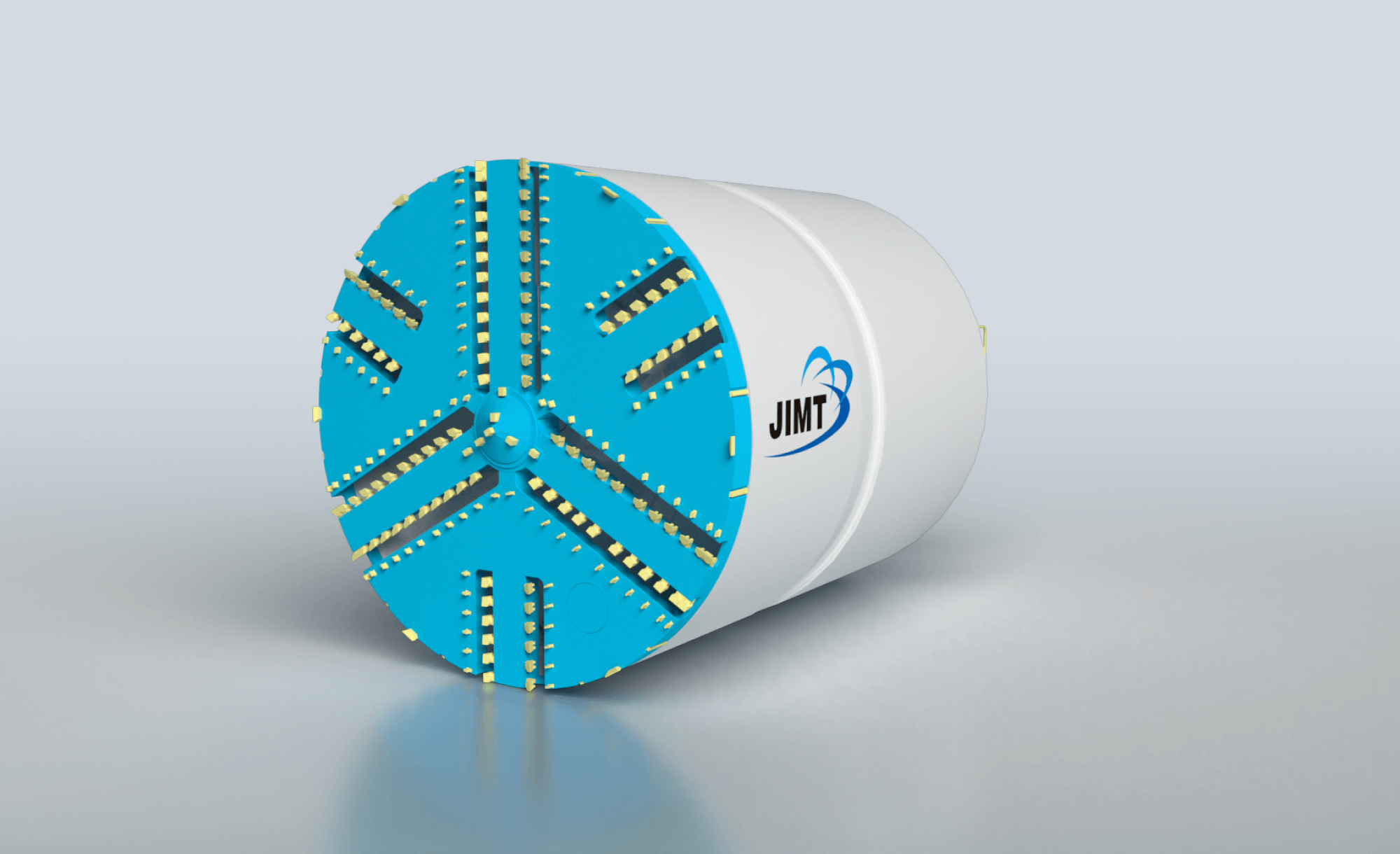

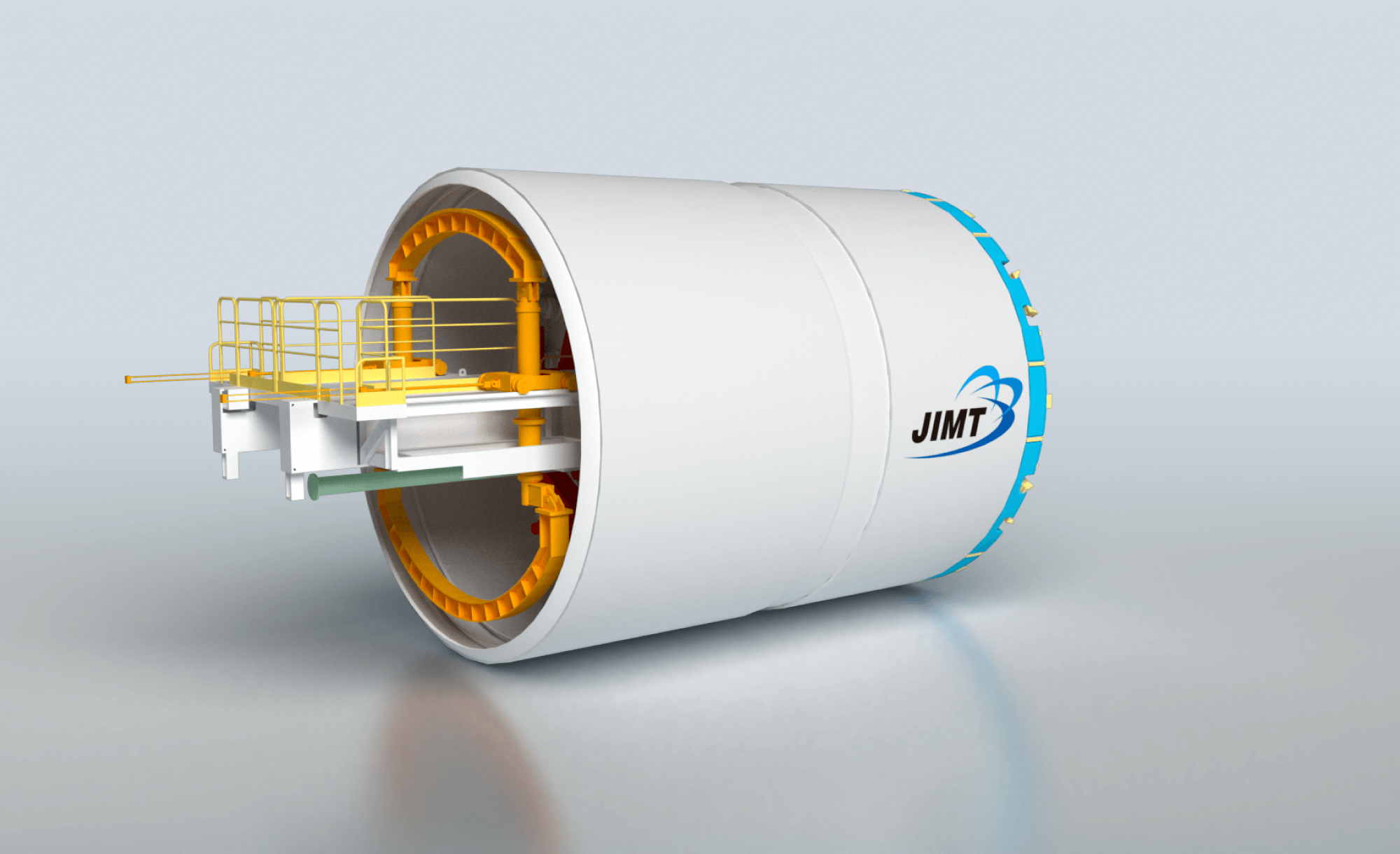

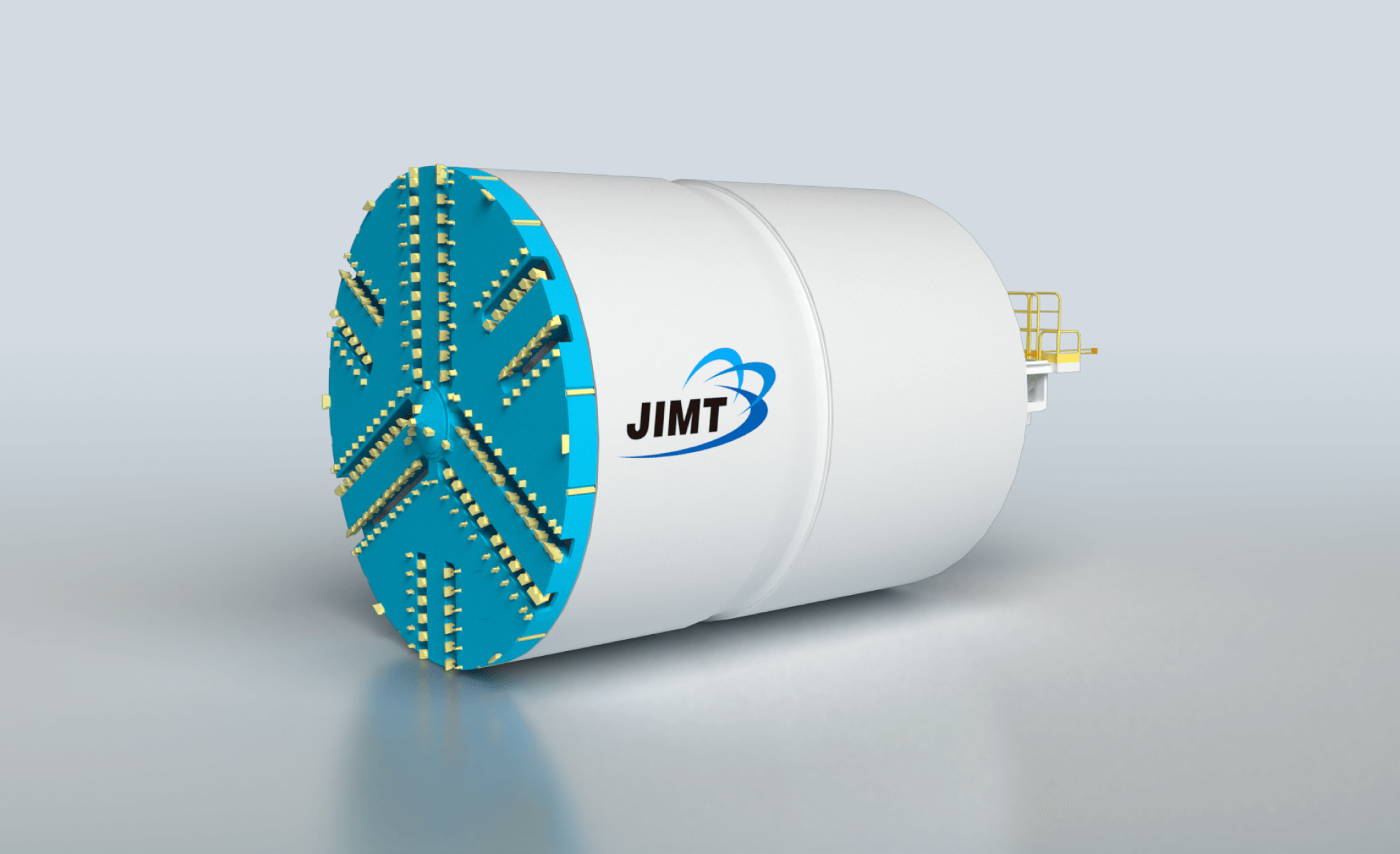

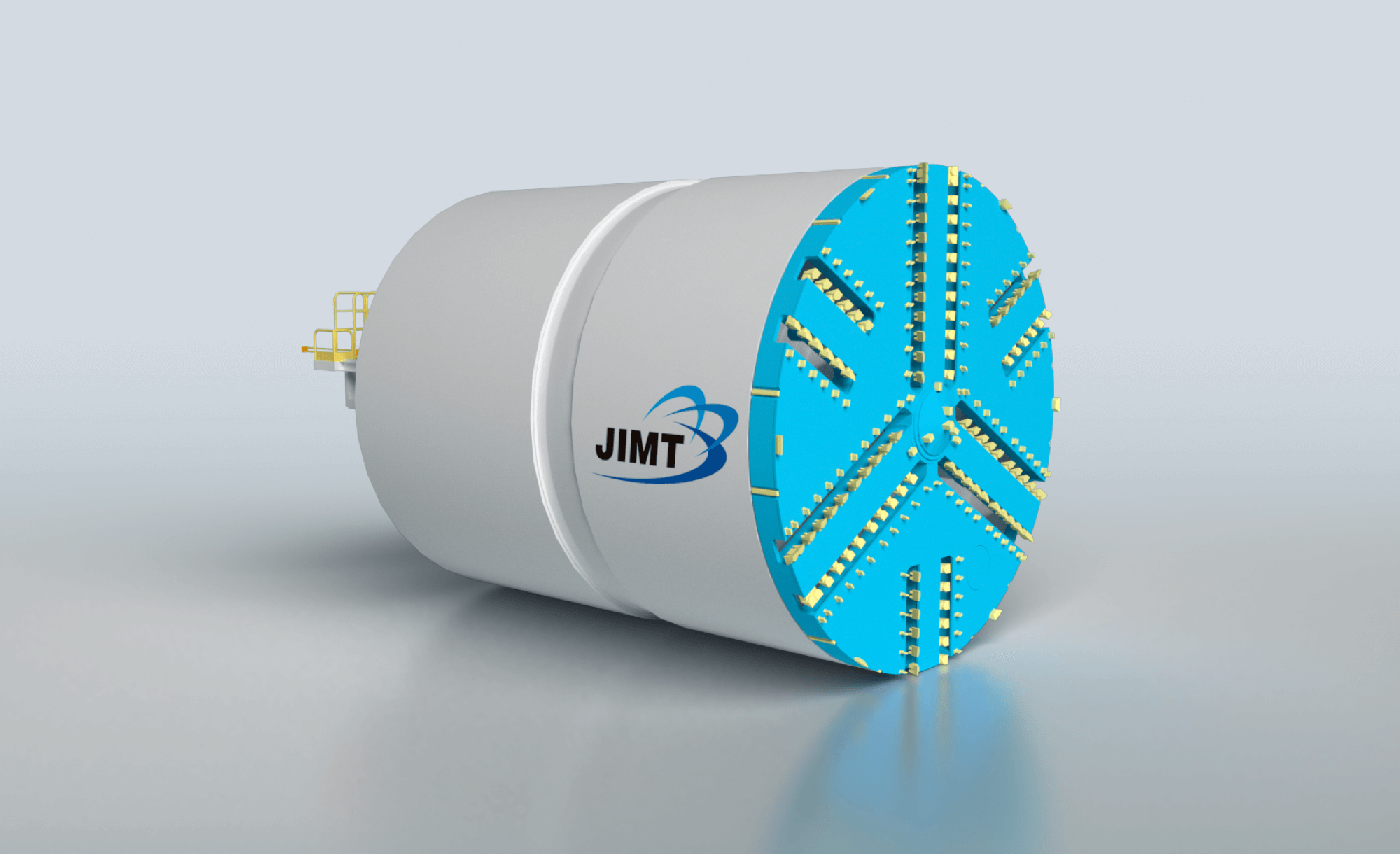

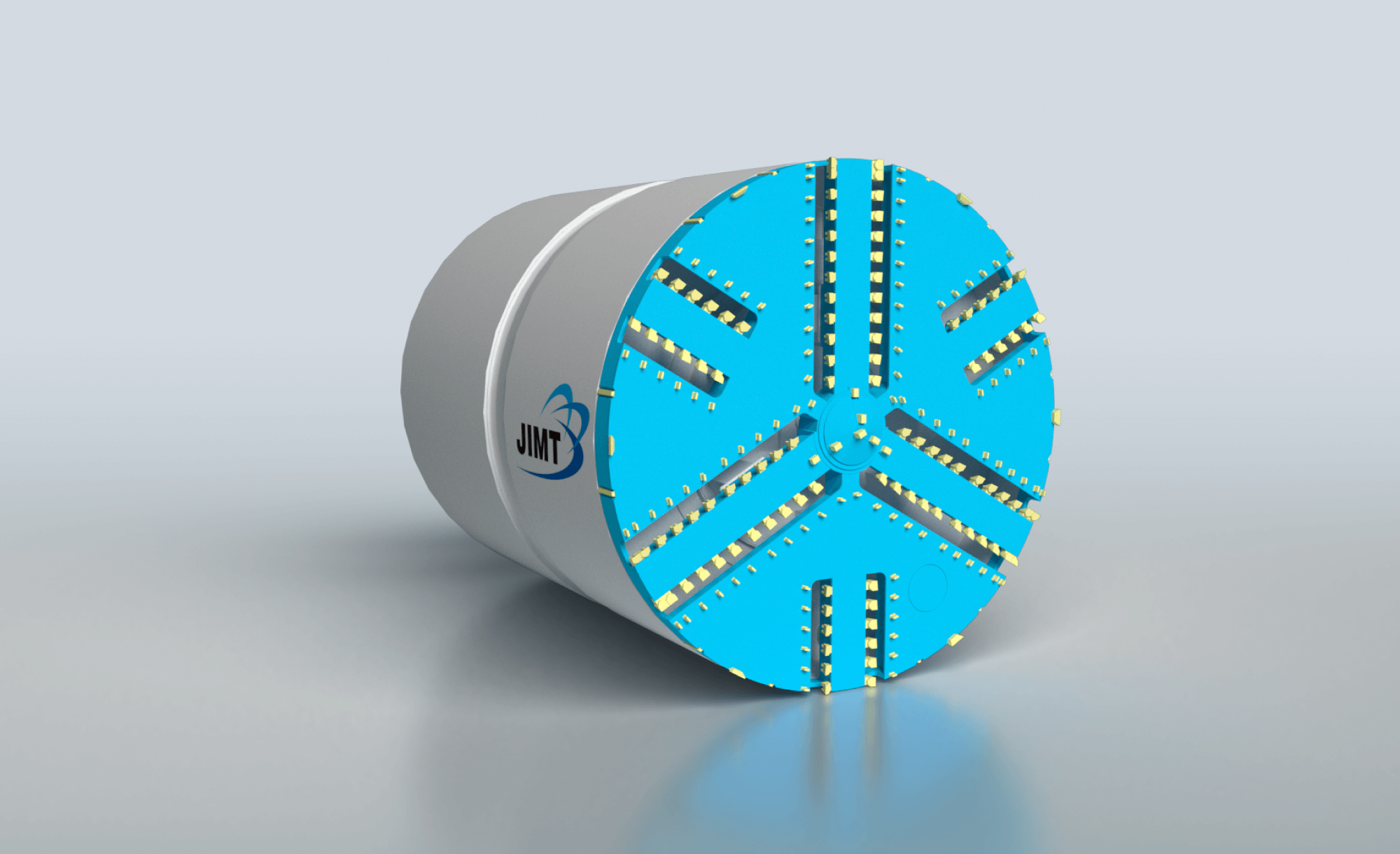

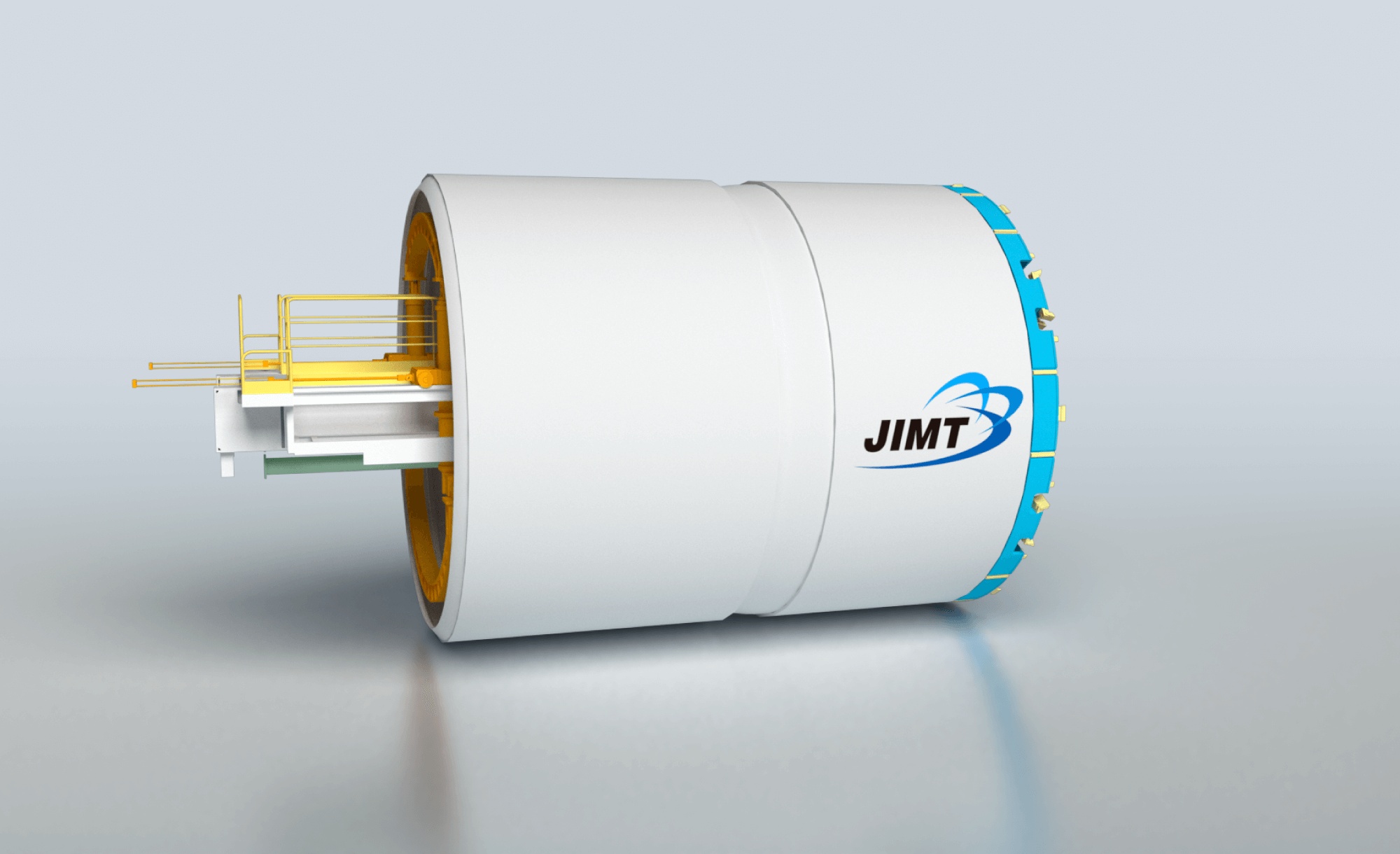

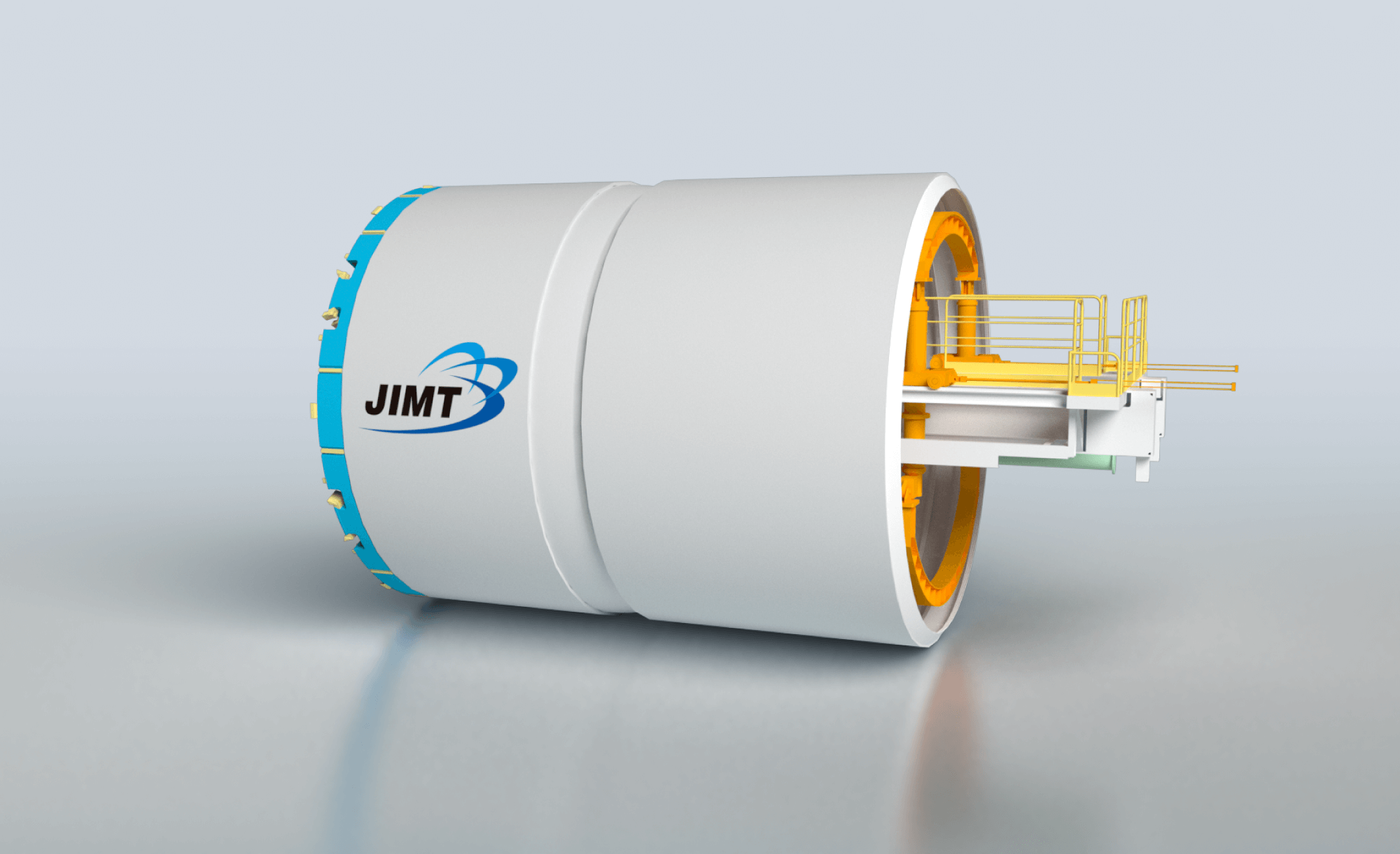

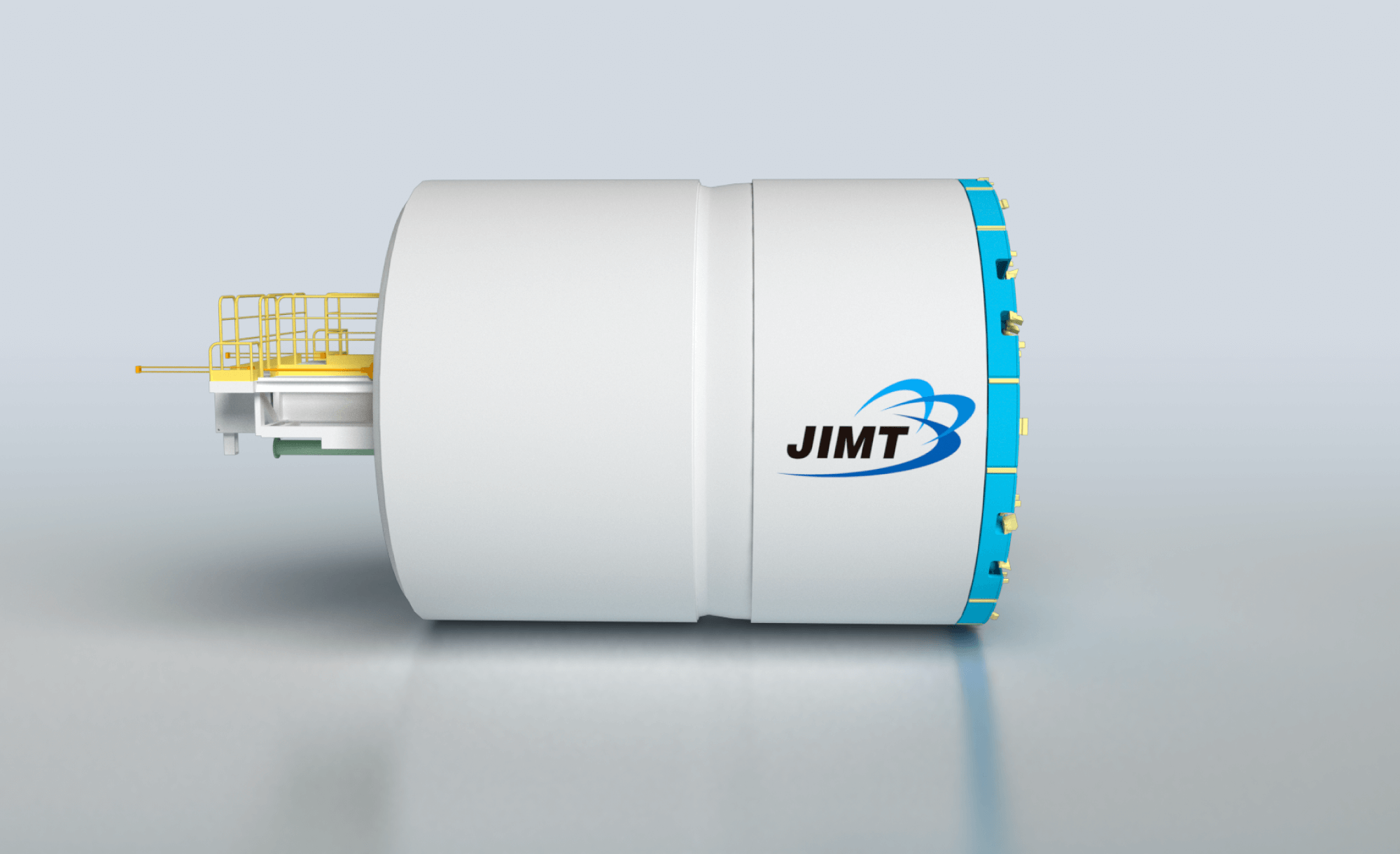

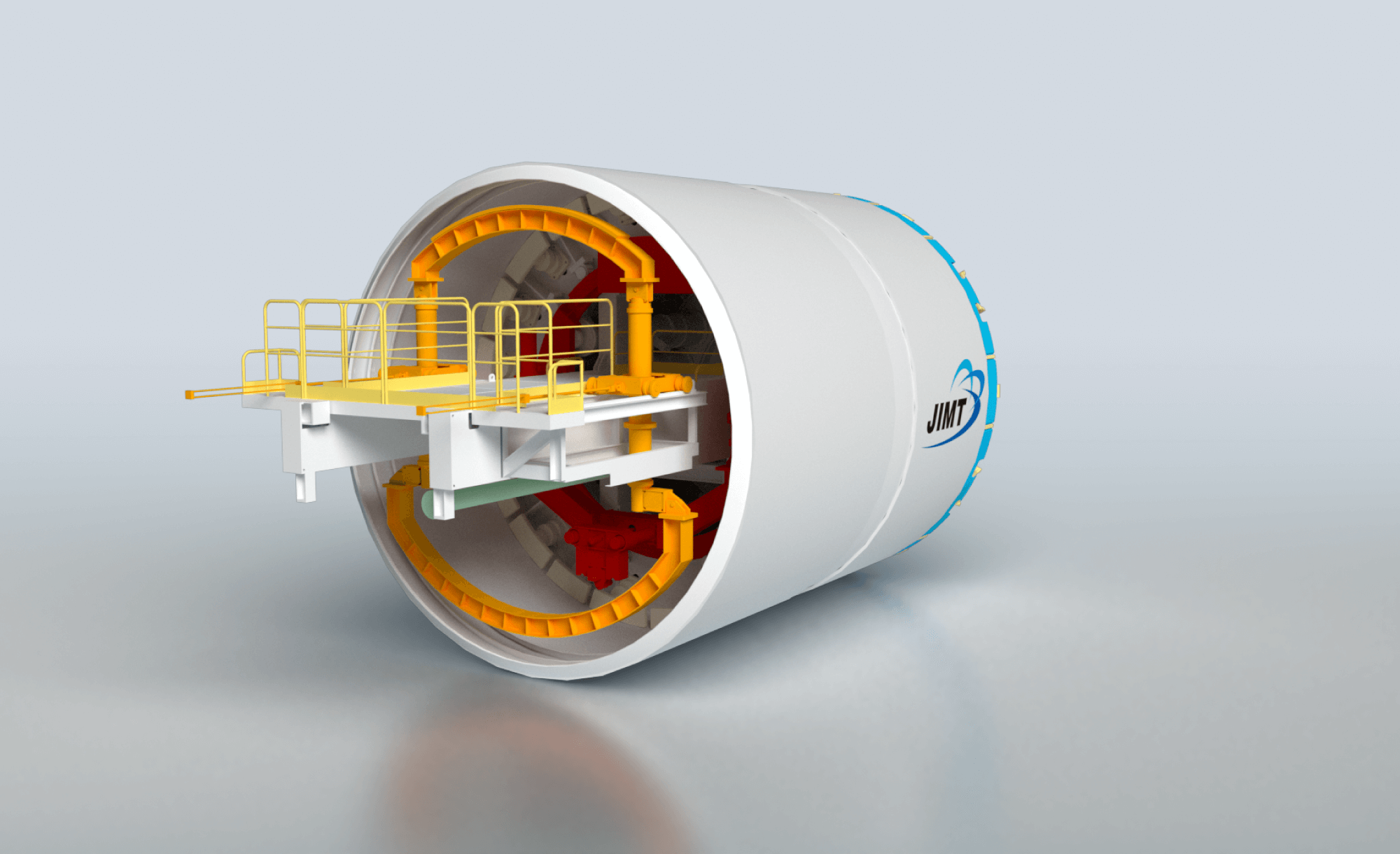

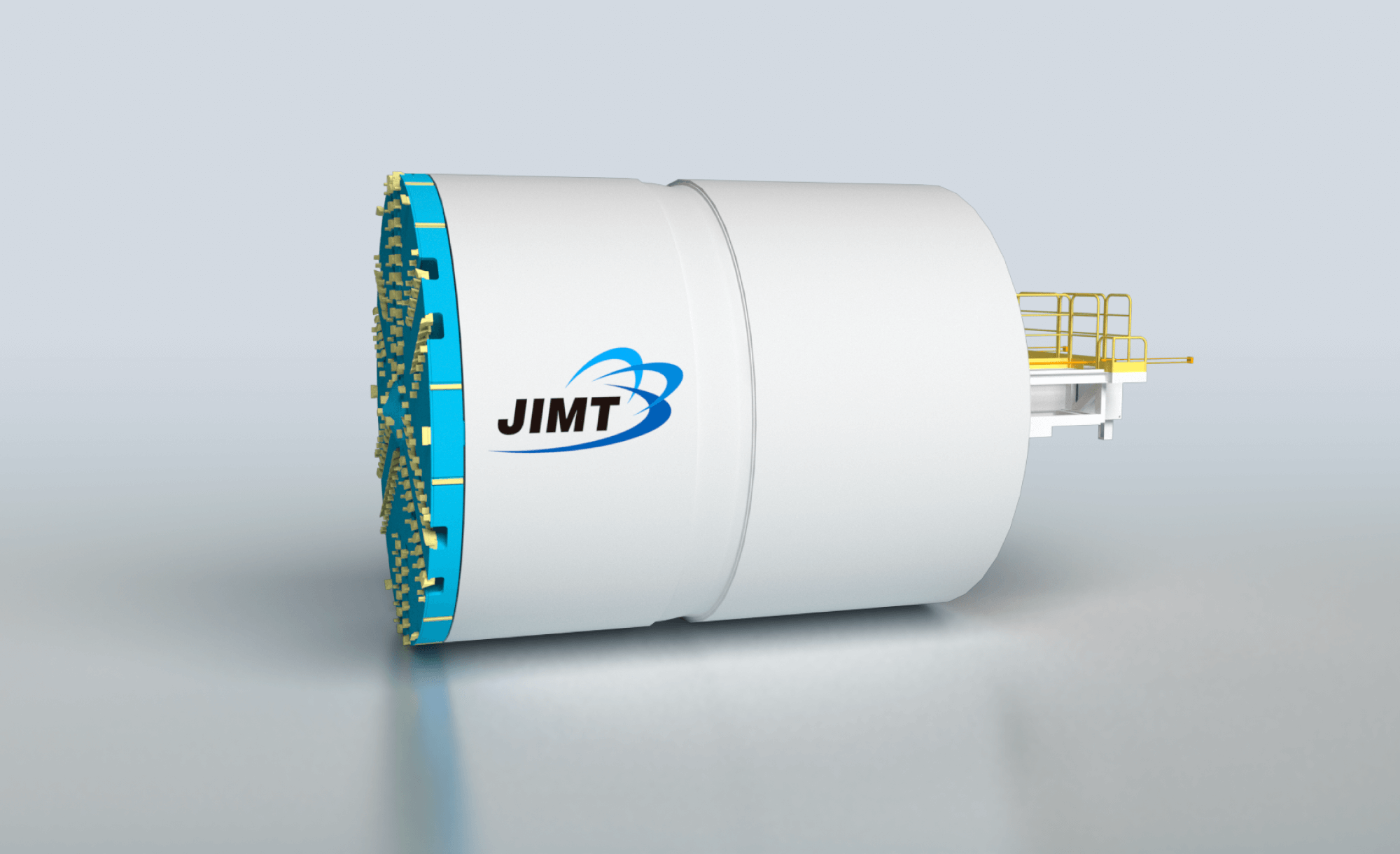

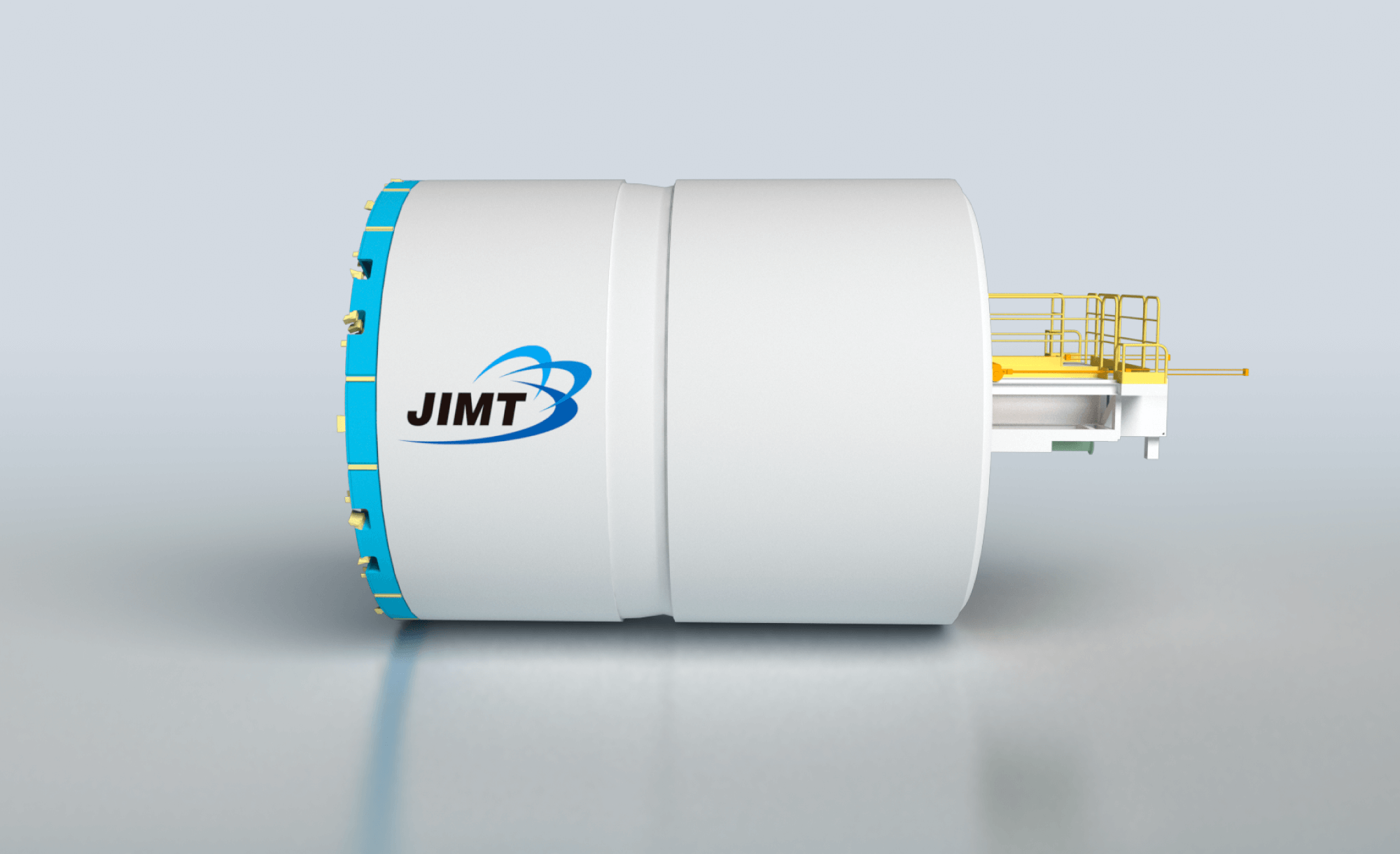

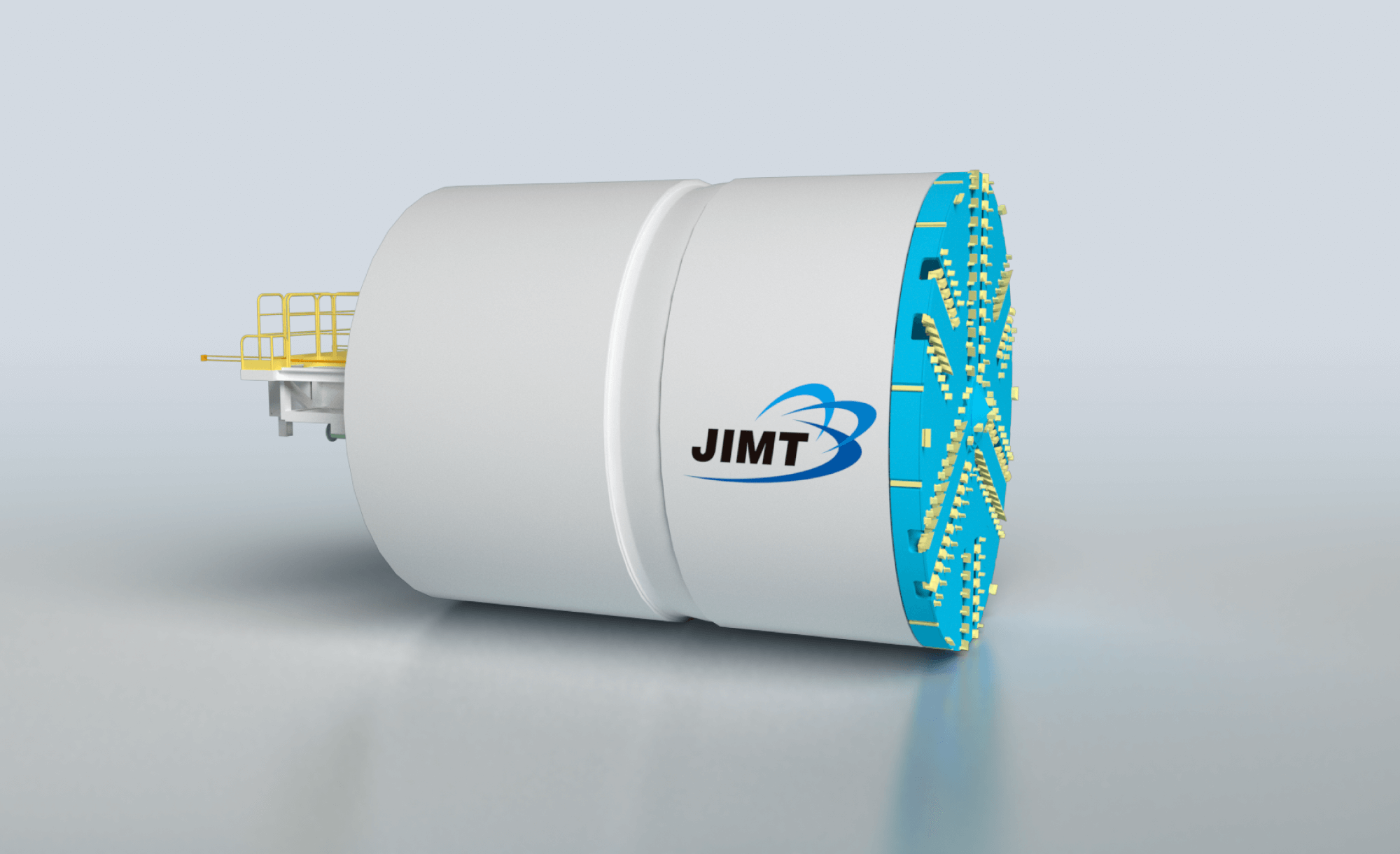

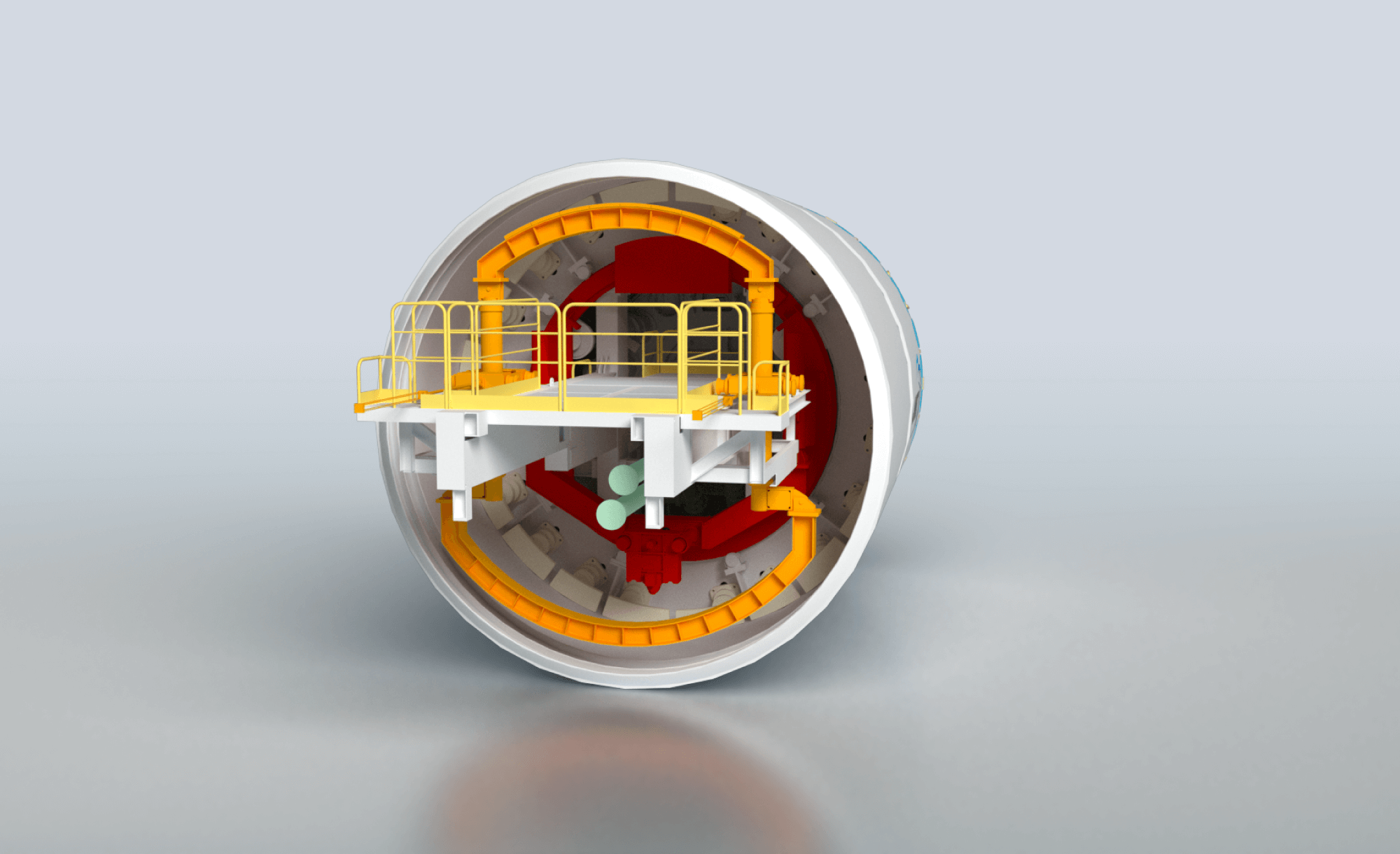

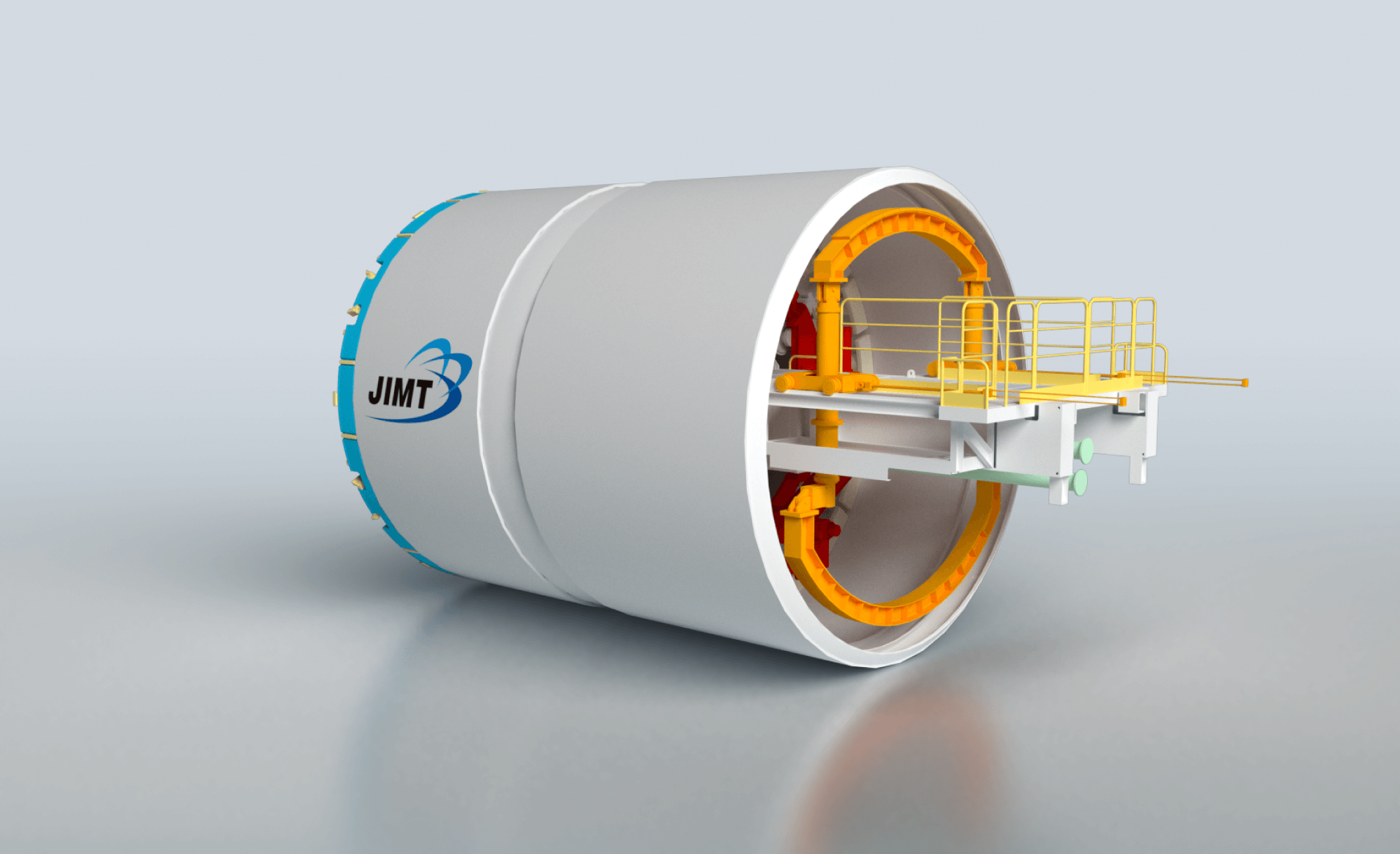

SLURRY SHIELD MACHINE

This type of machine is appropriate for various types of ground, as slurry is fed to the cutter chamber, and the characteristics of slurry and the slurry pressure are used
to provide resistance against the earth pressure and water pressure applied to the entire face in order to achieve stability of the face.
Excavation is performed while performing fluid transportation of the excavated muck with the circulated slurry.

1.Cutter bit

This is a part for cutting ground. It is necessary for the appropriate shapes and materials for the ground conditions to be selected.

Return to explanatory drawing

2. Cutter drive unit

This unit consists of motors and a gear in order to rotate the cutter head.

Return to explanatory drawing

3. Articulation cylinder

This is a device that provides support for curve negotiation by making an angle at the joint between some bodies of shield machine.

Return to explanatory drawing

4. Feeding slurry pipe

This is a device for feeding slurry into the chamber.

Return to explanatory drawing

5. Discharging slurry pipe

This is a device for discharging the ground taken in the chamber by using slurry flow.

Return to explanatory drawing

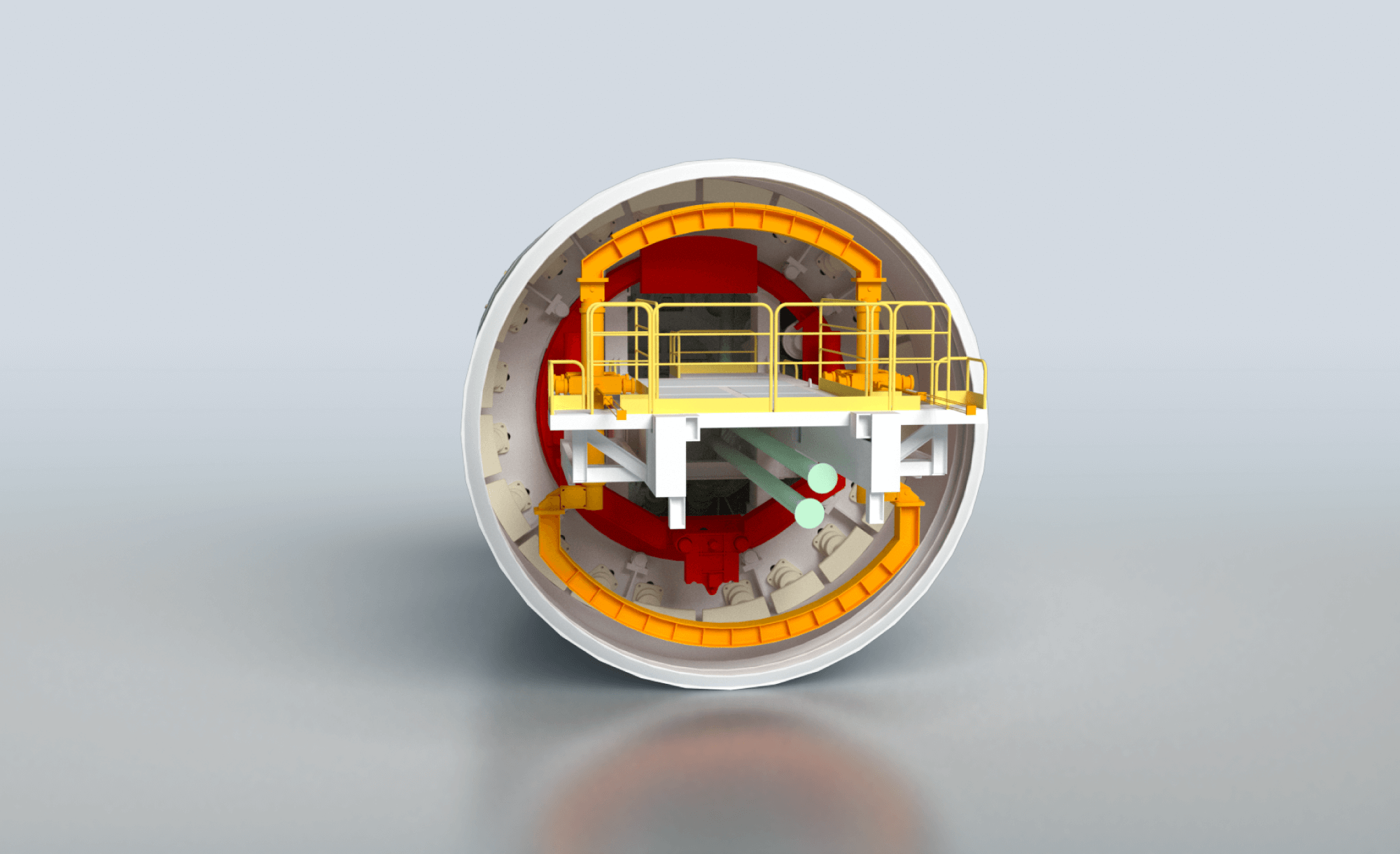

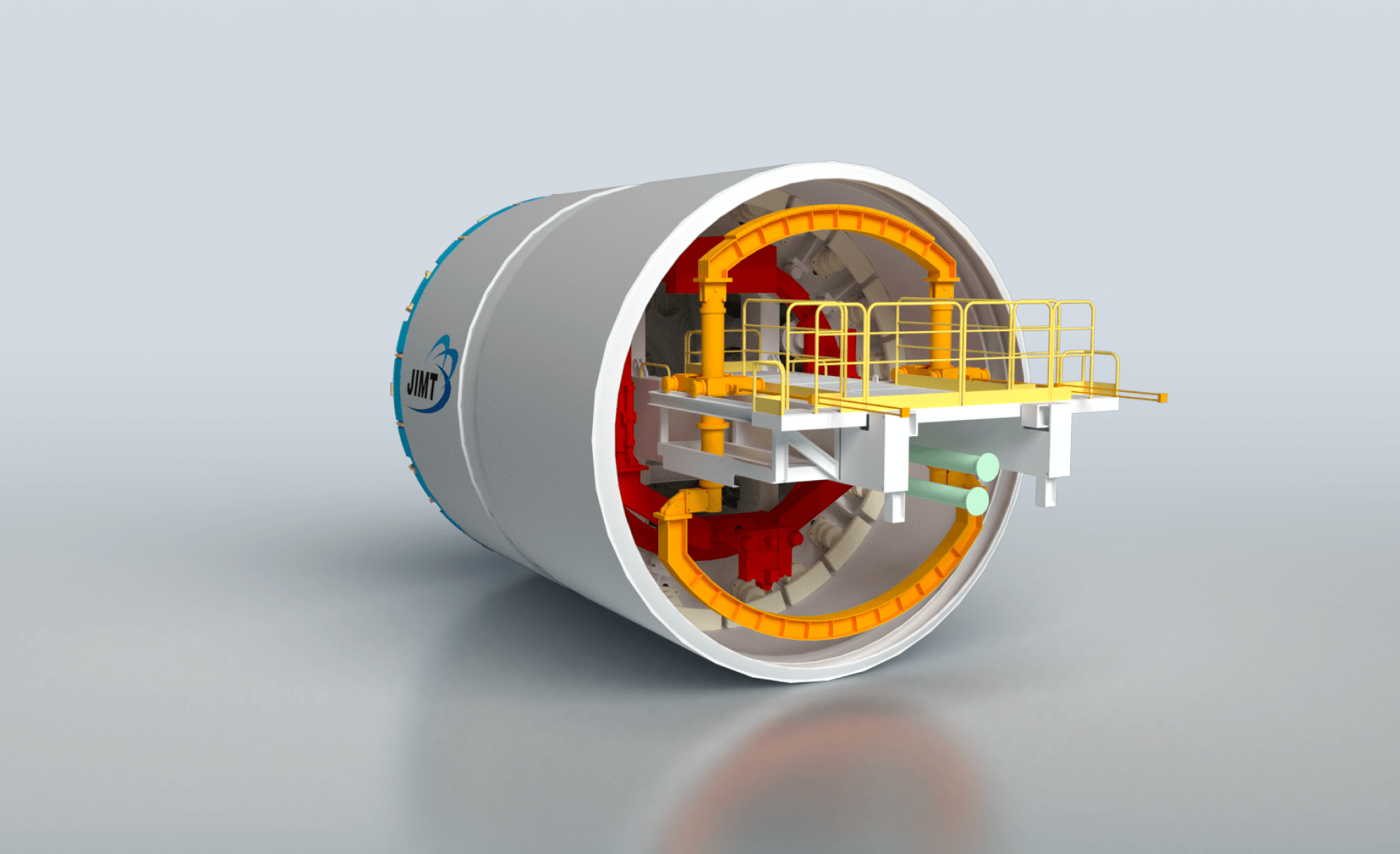

6. Erector

This is a device for erecting the segment by gripping the piece and bringing it to the erecting position. Multiple actuators are equipped in order to rotate and move forwards/backwards and in the radial direction.

Return to explanatory drawing

7. Rear scaffold

This is a scaffold for worker to stand on in order to erect the segment.

Return to explanatory drawing

8. Segment reforming device

This is a piece of equipment to maintain the roundness of the erected segment by extending it from inner side.

Return to explanatory drawing

9. Tail seal

This is a device that prevents the intrusion of ground water and soil into the machine by sealing the gap between the shield machine and segment.

Return to explanatory drawing

10. Thrust cylinder

This is a device to propel the shield machine by obtaining the reaction force from the segment erected by erector.

Return to explanatory drawing

11. Cutter chamber

This is a room in order to keep ground excavated by the cutter head.

Return to explanatory drawing

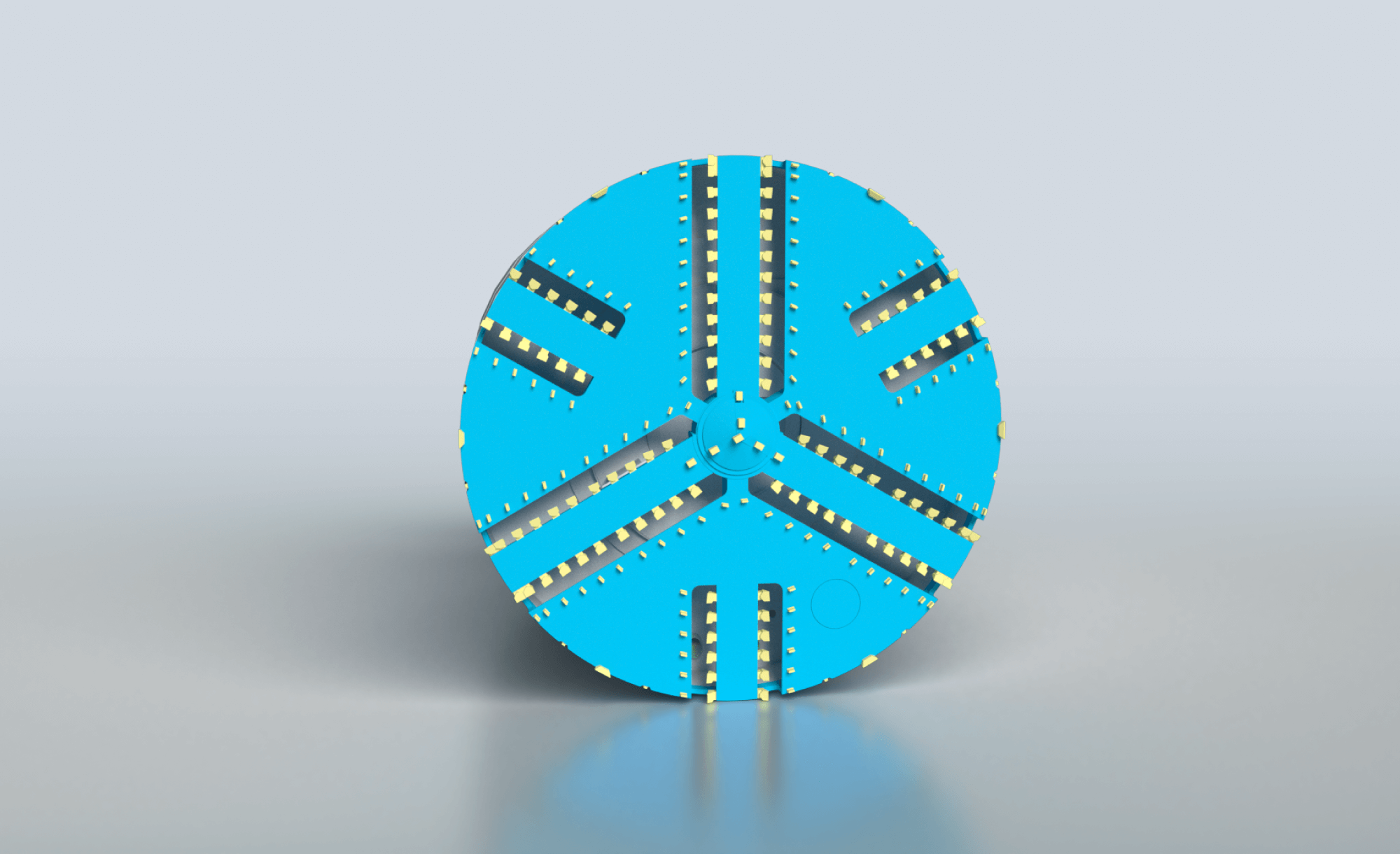

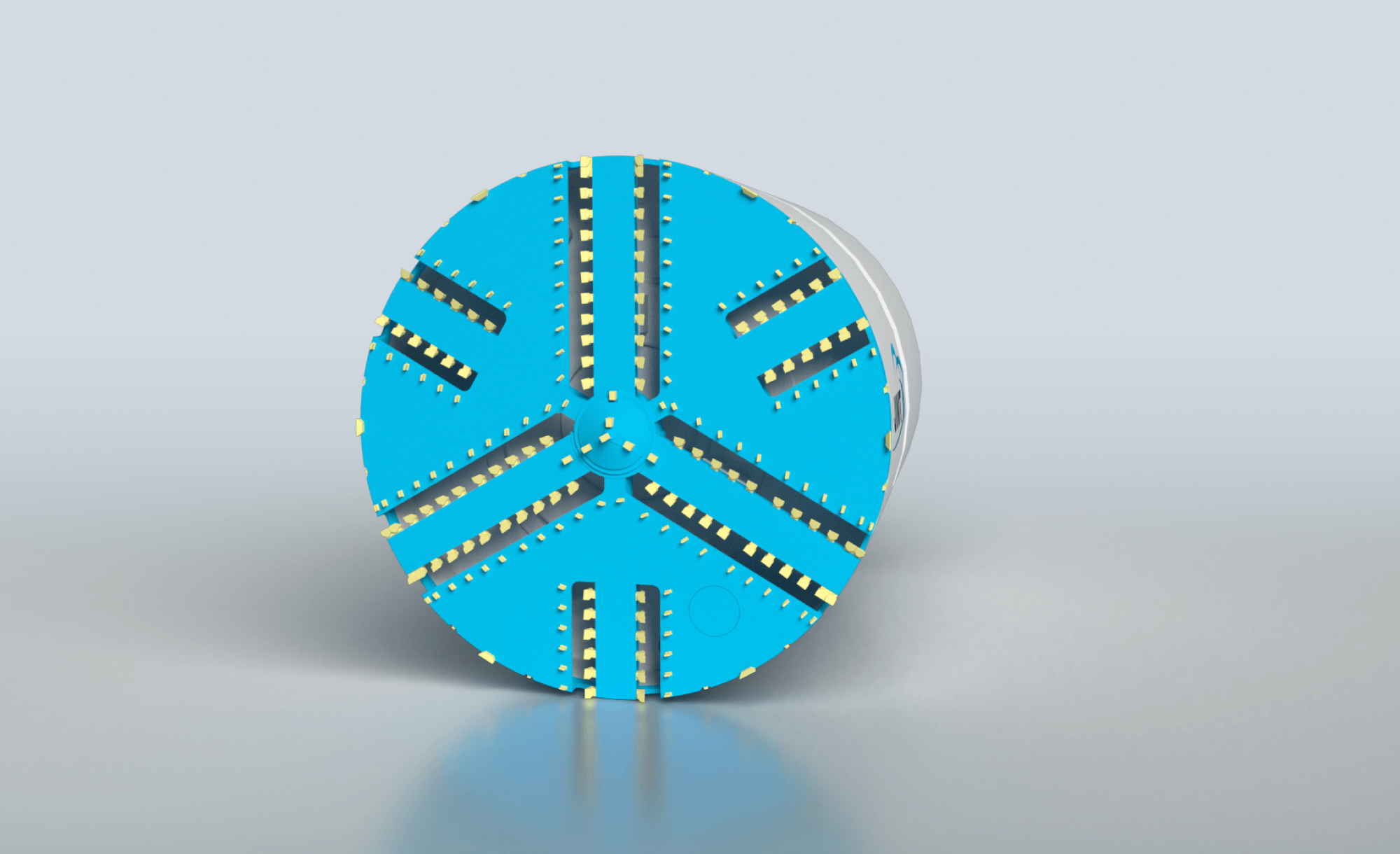

12. Cutter head

This is a device equipped with a cuter bit and excavates ground. Generally, a spoke type is applied in order to efficiently take the ground in.
